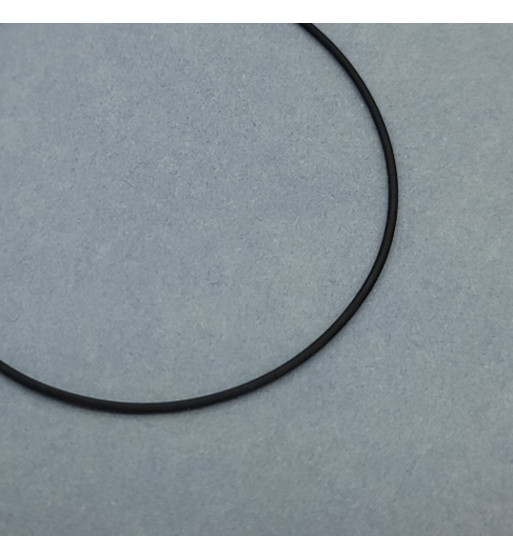

Rubber O-ring watch gasket 0.30 mm

This O-ring gasket of 0,30 mm thickness is a precision sealing component used by professional watchmakers and serious hobbyists to restore the water resistance of mechanical and quartz watches. Manufactured from NBR rubber (acrylonitrile-butadiene) compounded around 70 Shore A, it offers the elasticity required to seat correctly inside a case-back groove while preserving long-term resilience against compression set, watch oils and the small temperature swings encountered on the wrist.

Overview

The O-ring gasket in 0,30 mm is the most common sealing profile on contemporary watches. Its toroidal cross-section concentrates the elastic load on a thin contact line, which keeps friction low when the case-back is screwed home and produces a self-energising lip whenever external water pressure rises. Properly installed and lightly coated with Moebius 8217 silicone grease, this gasket contributes to a depth rating commonly stated as 3, 5 or 10 ATM depending on the watch case geometry.

This reference belongs to a calibrated assortment supplied with a comprehensive inside-diameter range, so the watchmaker can pick exactly the right size for a case-back gasket, a crown gasket or a crystal gasket on bezel-loaded movements. The grade chosen here is a workshop-tested NBR rubber (acrylonitrile-butadiene), identical in spirit to the gaskets fitted by mainstream Swiss and Japanese factories on three-hand divers and dress watches.

Technical specifications

• Type: O-ring gasket
• Thickness / cord diameter: 0,30 mm
• Material: NBR rubber (acrylonitrile-butadiene)
• Hardness: 70 ± 5 Shore A
• Service temperature: −20 °C to +100 °C
• Lubricant compatibility: Moebius 8217 silicone grease, silicone-based watch greases
• Use: case-back gasket, crown gasket, crystal gasket (bezel-loaded)
• Compatibility: most Swiss, Japanese, German and Chinese watches — Rolex, Omega, Seiko service references included

When to fit this gasket

A gasket of 0,30 mm should be selected whenever the original cord has lost section, flattened into the groove of the case-back, taken a permanent compression set or hardened to the point of leaving witness marks on the case. In normal use, the inspection interval is every battery change for quartz pieces and at every full service for mechanical watches — typically every four to six years. A gasket found dry, cracked or twisted must be replaced immediately, regardless of the apparent watertightness.

This thickness is also the right choice for replacing a worn crown gasket of the same cord on stems that drive a screw-down crown, and for rebuilding the seal under a pressed mineral crystal where the case maker originally fitted an O-ring between the bezel and the case middle. Many Rolex, Omega and Seiko service kits list gaskets in 0,30 mm for these exact positions.

How to fit the O-ring gasket

1. Remove the old gasket with a non-marring brass or wooden peg — never use a steel screwdriver against the case groove.
2. Clean the case-back groove and the case middle shoulder with isopropyl alcohol and a soft, lint-free cloth.
3. Inspect the new gasket against light: it must be free of nicks, twists or flat spots.
4. Apply a very thin film of Moebius 8217 silicone grease all around the gasket — too much grease attracts dust and accelerates ageing.
5. Seat the gasket flat in the groove without stretching it; an O-ring that has been pulled long will fold during closing.
6. Close the case-back by hand first, then finish with a fitting die so the load is applied symmetrically.
7. Pressure-test the watch on a wet or dry tester to the original ATM rating before returning it to the customer.

Quality and traceability

Each batch of gaskets is checked dimensionally with a profile projector and randomly tested for hardness on a Shore A durometer before shipment. The NBR rubber (acrylonitrile-butadiene) compound is sourced from a European supplier with full RoHS and REACH compliance, and the gaskets are stored away from ozone and direct sunlight to preserve elasticity. For watchmakers who service vintage chronographs or warm chronometers, an alternative FKM / Viton fluoroelastomer variant and an EPDM variant are available on request, both compatible with Moebius 8217 silicone grease.

Frequently asked questions

How do I measure the O-ring I need?

Measure the cord diameter (thickness) and the inside diameter of the original gasket with a caliper after removing it from the case-back groove. For a 0,30 mm cord, the assortment offers a continuous range of inside diameters; pick the one that drops freely into the groove without bunching.

Can I use the same gasket on the crown gasket?

Many screw-down crowns share the cord diameter with the case but use a smaller inside diameter; verify the crown gasket size in the brand's technical sheet. If the cord matches, this reference fits; otherwise pick the same 0,30 mm cord in the correct inside diameter.

Is NBR rubber (acrylonitrile-butadiene) compatible with my Moebius 8217 silicone grease?

Yes. NBR rubber (acrylonitrile-butadiene) is the standard compound paired with silicone-based watch greases such as Moebius 8217 silicone grease; the grease swells the polymer marginally and seals it without attacking it. Avoid mineral oils, brake fluids and aromatic solvents.
